SSY-CC-21 High Voltage Coaxial Cable
A reliable, customizable complete wiring harness kit designed for demanding automotive and industrial applications requiring high-voltage coaxial transmission.
Product Overview

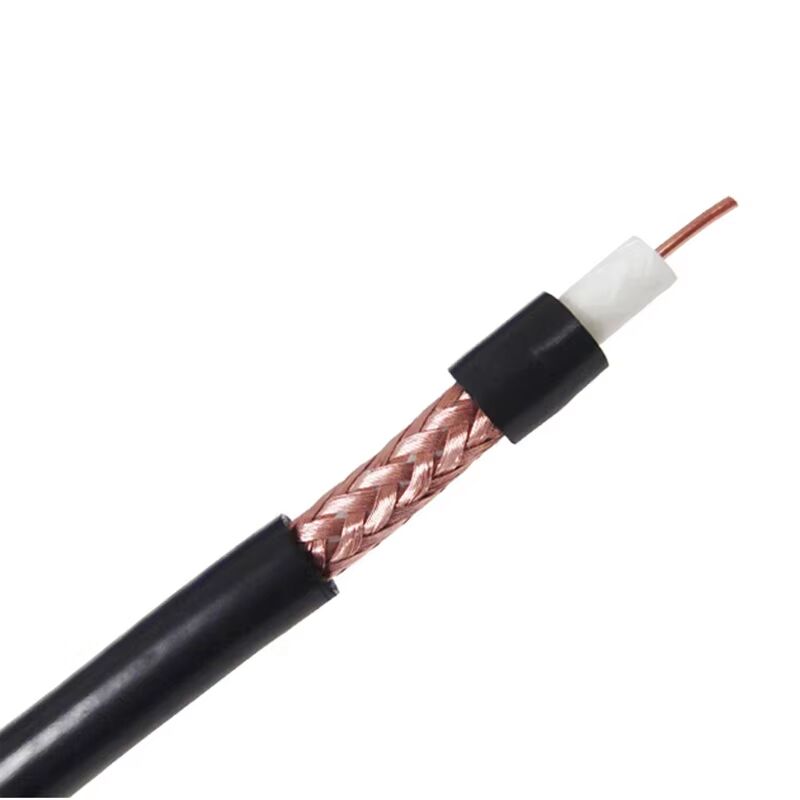

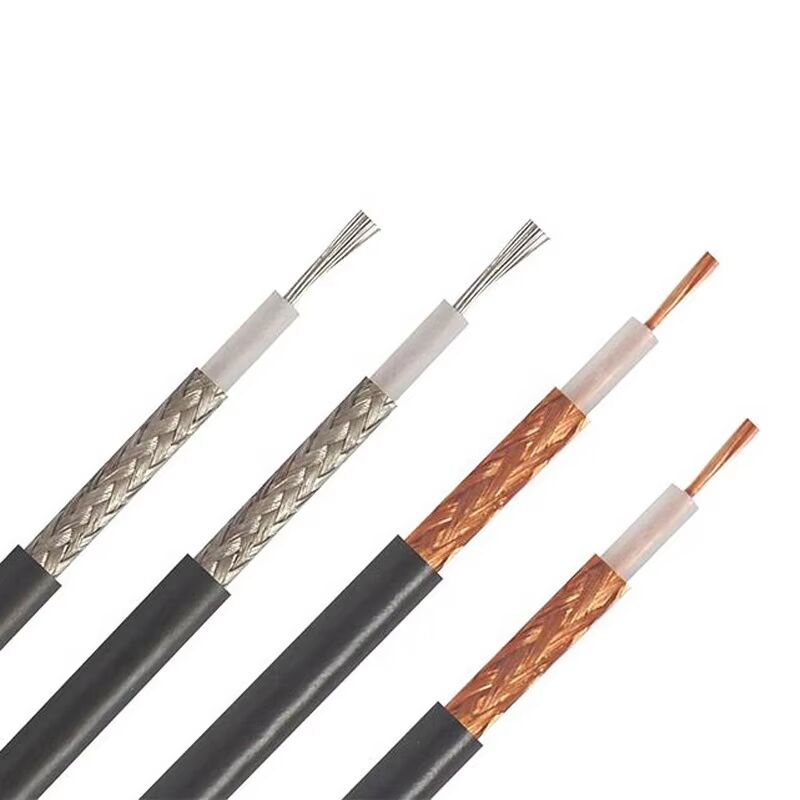

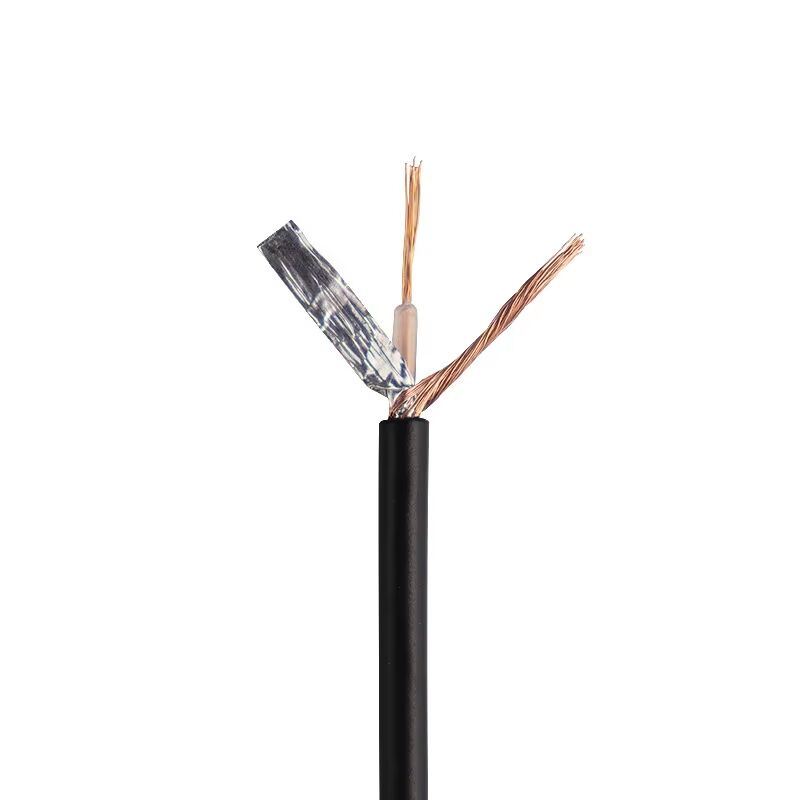

This high-voltage coaxial cable features a durable PVC jacket that provides exceptional protection against harsh environmental conditions, including sunlight, moisture, and other external factors. The PVC jacket adds flexibility for easy installation and maneuverability.
With a standard length of 100 meters, this cable is ideal for long-distance transmission applications. The XLPE insulation material offers excellent electrical properties that ensure superior insulation and minimal signal distortion, providing stable, high-quality transmission for applications requiring reliable signal integrity.

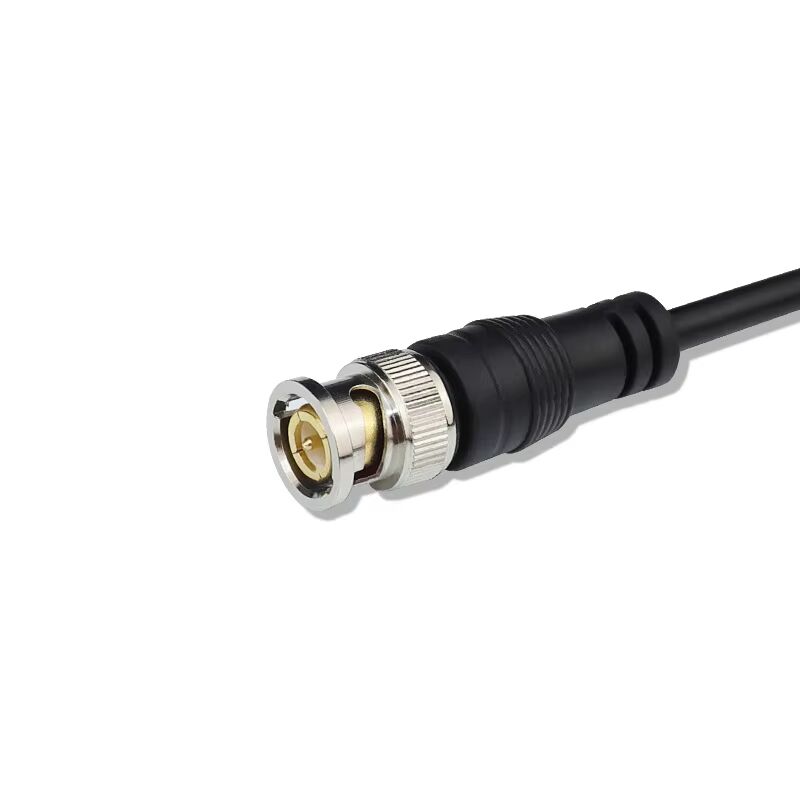

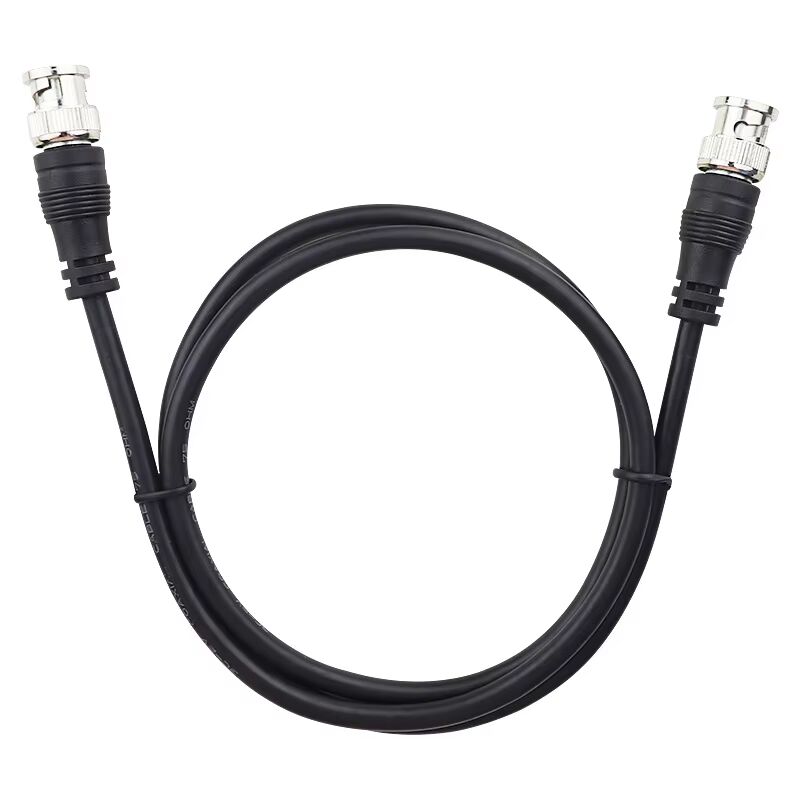

The integrated coaxial cable connector ensures secure, reliable connections that eliminate signal loss and interference. This easy-to-install connector enables quick, hassle-free setup in various applications.
Key Features
- Product Name: High Voltage Coaxial Cable
- Type: Coaxial Transmission Line
- Impedance: 50 Ohms
- Frequency Range: 0-3 GHz
- Application: High Voltage Transmission
- Jacket: LSZH (Low Smoke Zero Halogen)
- Insulation: High Voltage Insulated Cable
- Conductivity: High Voltage Conducting Cable
Technical Specifications
| Attribute |
Value |
| Type |
Coaxial Cable |
| Impedance |
50 Ohms |
| Insulation Material |
Polyethylene |
| Jacket Material |
PVC |
| Insulation |
XLPE |
| Cable Length |
100 Meters |
| Impedance |
Less Than 30 Ohm |
| Voltage |
40KV |
| Application |
High Voltage Transmission |
| Shield |
Bare Copper |
Applications

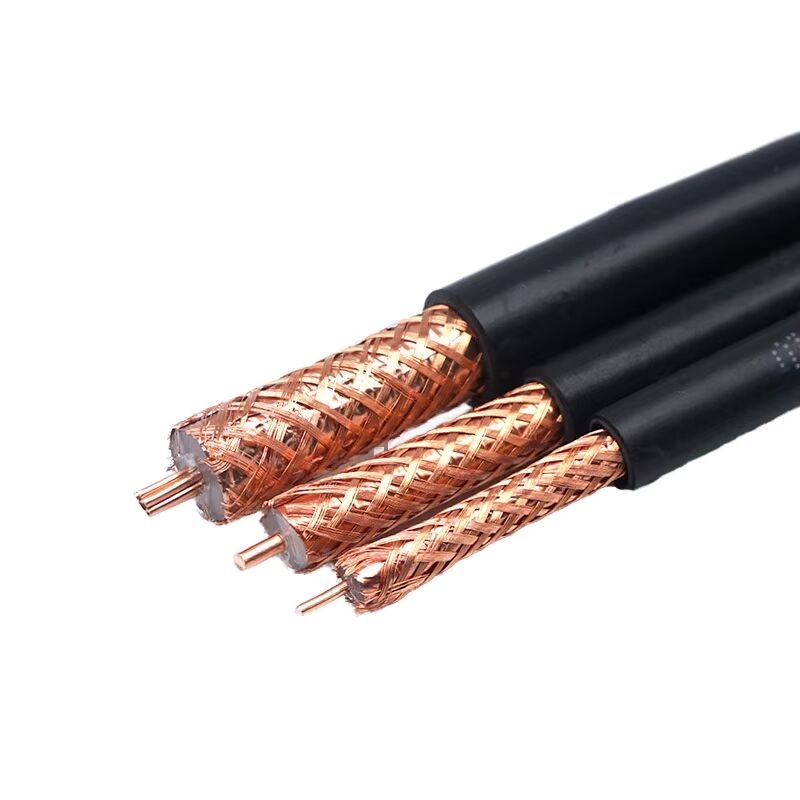

The SSY-CC-21 Coaxial Cable, constructed with copper for excellent conductivity and XLPE insulation for minimal signal loss, is perfect for power plants, transmission towers, and other high-voltage transmission scenarios. It's also ideal for coaxial cable assemblies and is certified by UL, CE, and ROHS for safety and quality assurance.
Support & Services
Our technical support team provides comprehensive assistance with product specifications, installation, and troubleshooting. Additional services include:
- Custom cable design and manufacturing
- Cable testing and certification
- On-site installation and maintenance
- 24/7 technical support
- Training and education programs
Packaging & Shipping
Each High Voltage Coaxial Cable is carefully packed in sturdy cardboard boxes with sufficient padding and protective plastic wrapping to ensure perfect condition upon arrival. Free standard shipping is available for all orders within the United States (3-5 business days). International shipping rates are calculated at checkout with delivery times varying by destination.
Frequently Asked Questions
What is the brand name of the High Voltage Coaxial Cable?
The brand name is SSY.
What is the model number?
The model number is SSY-CC-21.
Where is the cable manufactured?
Manufactured in Guangdong, China.
What certifications does the cable have?
UL, CE, and ROHS certifications.
What is the minimum order quantity?
Minimum order quantity is 100 units.
What is the price range?
Price range is $1.99 - $5 per unit.
What are the packaging details?
Packaged in cartons.
What is the delivery time?
Delivery time is 3-5 weeks.
What payment terms are accepted?
L/C, T/T, and D/A payment terms.
What is the supply capacity?
Supply ability is 99,999 units per month.
