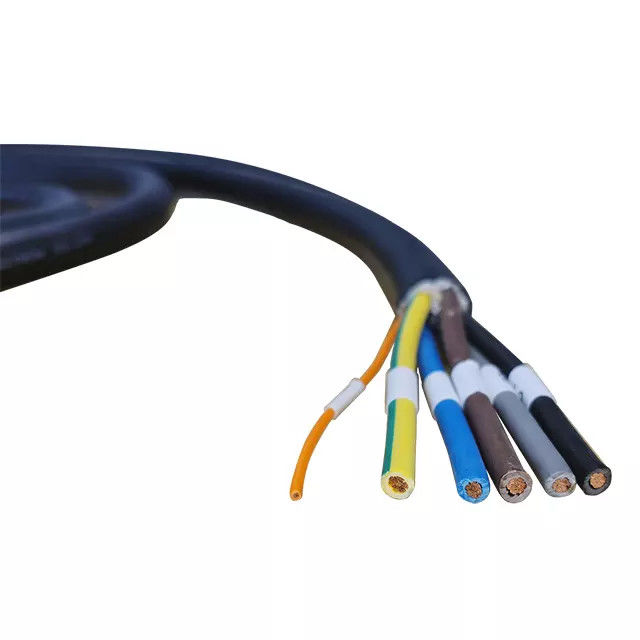

2 Open End 3 Phase 32 Amp High Voltage Coaxial Cable 21kW IEC 62196-2

2 Open End 3 Phase 32 Amp High Voltage Coaxial Cable 21kW IEC 62196-2

3 Phase 32 Amp High Voltage Coaxial Cable 21kW IEC 62196-2

2 Open End 3 phase 32 amp cable

3 phase 32 amp cable 21kW IEC 62196-2

Place of Origin:

CN

Brand Name:

SSY

Certification:

ROHS

Model Number:

35558375

Contact Us
Request A Quote
Product Details
Conductor Material:
Copper/CCS/CCA
Insulation:
Gas Expanded PE(physical Foam PE) Or Solid PE
Shield:
Foil Shield And Al(aluminum) Wire Braiding
Jacket:
PVC, FRPVC, PE, LSZH(Low Smoke & Zero Halogen) Available
Voltage:
40KV
O.D:
10.5
Color:
Black
Impedence:
25ohm
Highlight:

3 Phase 32 Amp High Voltage Coaxial Cable 21kW IEC 62196-2

,

2 Open End 3 phase 32 amp cable

,

3 phase 32 amp cable 21kW IEC 62196-2

Payment & Shipping Terms
Minimum Order Quantity
30KM
Price
TBA USD
Packaging Details
Spool
Delivery Time
2~4weeks
Payment Terms
T/T
Supply Ability
999999M
Product Description

32A 3 Phase EV Charging Cable Type 2 Open End 21kW IEC 62196-2 EV Charger Cable



 Product Description

Inner Conductor: solid CCS(copper covered steel)conductor;

Insulation: gas expanded PE(physical foam PE) or solid PE ;

Outer Conductor:

Single shield:BC(bare copper) braiding,

or Dual shield: foil shield(aluminum-polypropylene-aluminum laminated tape with overlap) and Al(aluminum) wire braiding, various of coverage;

or Quad shield: [foil shield(bonded aluminum-polypropylene-aluminum laminated tape with overlap), and Al(aluminum) wire braiding, various of coverage, and foil shield(aluminum-polypropylene-aluminum laminated tape with overlap), and Al(aluminum) wire braiding, various of coverage] ;

Jacket: PVC, FRPVC, PE, LSZH(Low Smoke & Zero Halogen) available;



RoHS Complaints(2002/95/EC)



Application

For broad video, video distribution connect;

Flooding and PE jacket for underground;

PVC jacket for general purpose;

FRPVC(Flame Retardant), LSZH(Low Smoke & Zero Halogen) version for indoor purpose;

PE jacket for outdoor purpose;

Dual construction is available.

Part No. Specification

Inner

conductor

Dielectric Shield Jacket
AWG MTR. MTR.

Nom.

Dia.

Foil Braid Coverage MTR.

Nom.

Thick

Nom.

Dia.

mm mm mm
113121

RG59

Quad

20 CCS Foamed PE 3.66 B-Al/P/Al Tape + Al wire 60+ Al/P Tape+ Al wire 40% FRPVC 0.89 6.70
113122 RG59 22 CCS Foamed PE 3.66 ----- BC 95% FRPVC 0.89 6.10
113123 RG59 22 CCS PE 3.66 ----- BC 90% FRPVC 0.89 6.10
113124 RG59 23 CCS PE 3.71 ----- BC 95% PVC 0.89 6.10
113125 RG59 20 CCS Foamed PE 3.66

Al/P

Tape

Al 40% FRPVC 0..89 6.10
113126 RG59 20 CCS Foamed PE 3.66

Al/P

Tape

Al 67% FRPVC 0.89 6.10
113127

RG59

Burial

20 CCS Foamed PE 3.66

Al/P

Tape

Al 67% PE 0.89

6.10

Floodant1

113128 RG59 20 CCS Foamed PE 3.66

Al/P

Tape

Al 95% FRPVC 0.89 6.10



Note:

*BC is bare copper;

*CCS is copper clad steel;

*B-Al/P/Al Tape is bonded aluminum-polypropylene-aluminum laminated tape with overlap;

*Al is aluminum;

*Al/P Tape is aluminum-polypropylene laminated tape with overlap;

*FRPVC is flame retardant PVC;

1 Floodant Flooding and PE jacket.





  INNER CONDUCTOR FOAMED PE APA FOIL BRAIDINGS PVC
RG6 1.05mm copper 4.7mm 4.95mm 5.5mm Tcopper 6.8mm W
RG11 1.72mm copper 7.3mm 7.6mm 8.2mm copper 10.1mm B
CAT5 0.5mm Core 0.92mm, Pairs 2 X 4, outer Dimension 4.2mm
