Place of Origin:
SSY
Brand Name:
SSY
Certification:
ROHS
Model Number:
S2201042

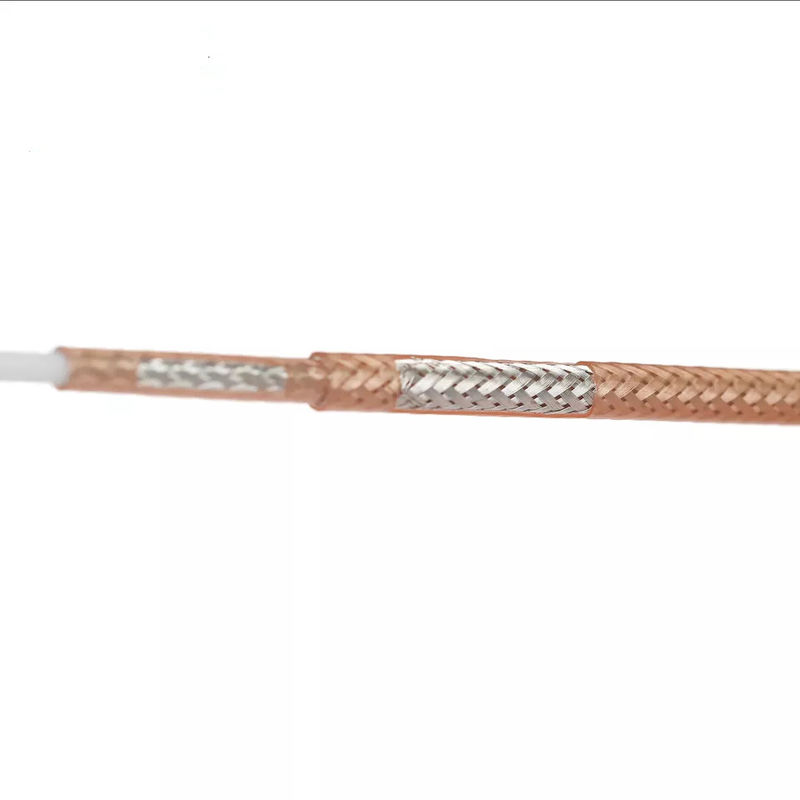

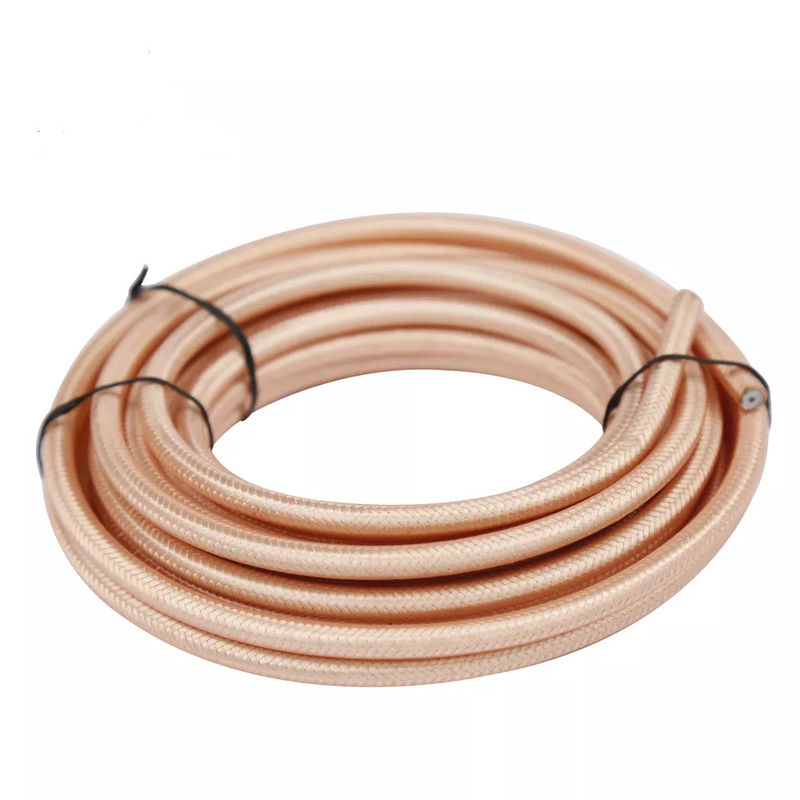

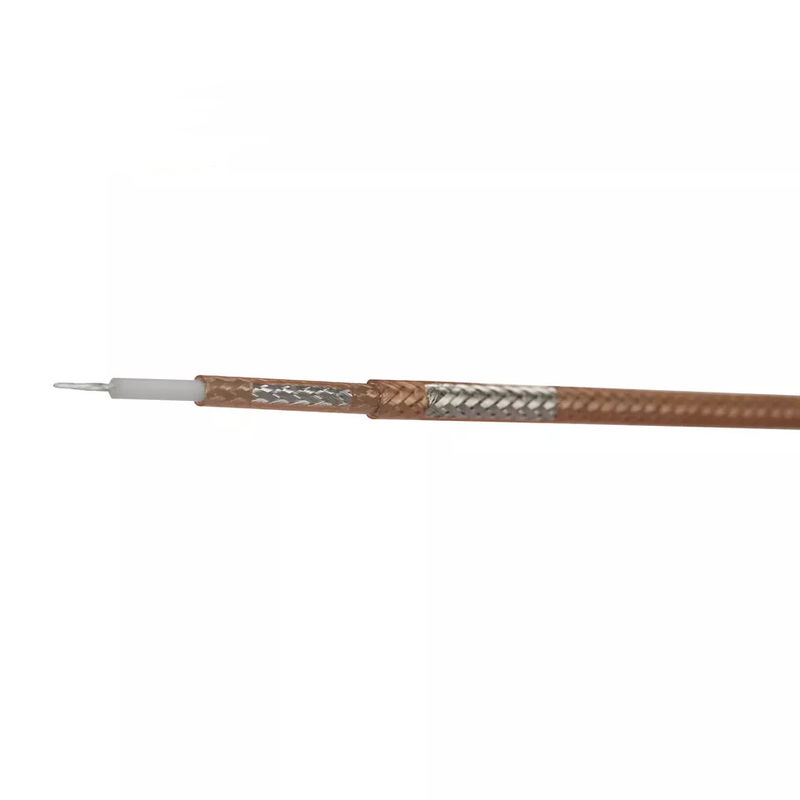

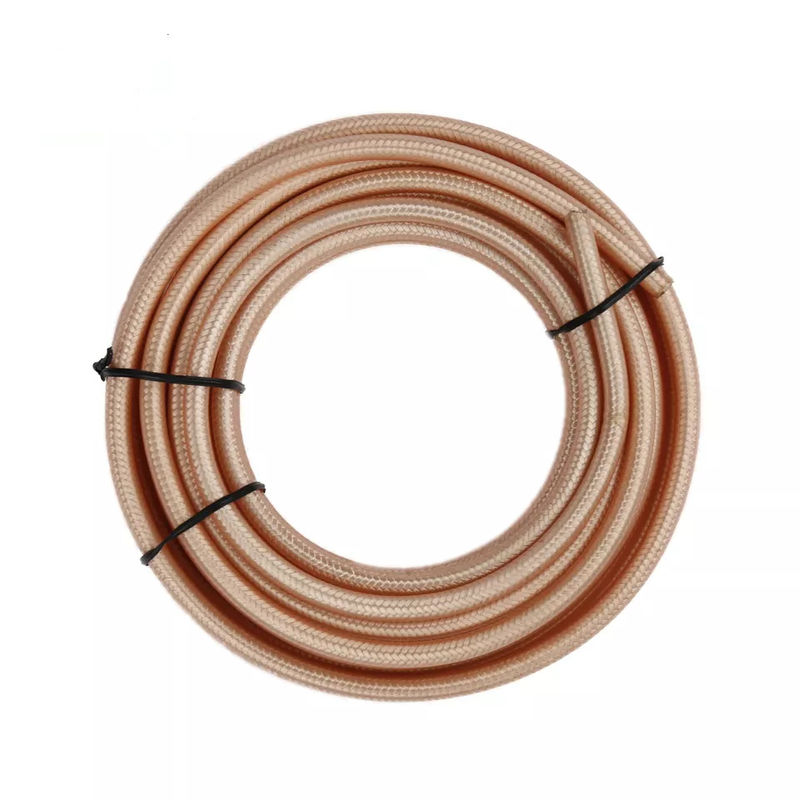

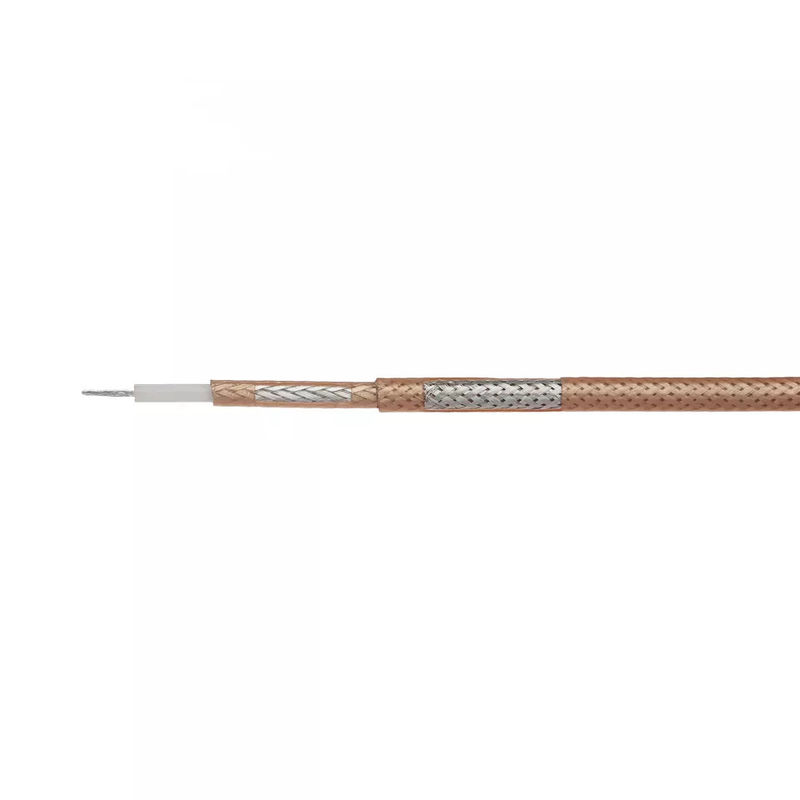

High Voltage coaxial cable light brown RG400 RF coaxial cable with Silver Copper conductor FEP jacket
Product Description
Typical Application:Transmission of data signals in applications such as antenna feed cables or Ethernet backbones where high temperature performance is needed.
Best Feature: Lower loss than smaller diameter cable such as RG174, high temperature rating of extruding FEP jacket. The RG400 loss is widely accepted at HF frequencies. Because it is constructed with a silver plated outer conductor this prevents oxidation of the conductor which decreases loss vs time.
Custom service:
We supply RG400 cable assembly with N connector, 7/16 DIN connector, BNC connector TNC connector
Custom packing: the length can be 100m/roll, 200m/roll, 305m/ roll, or 500m/drum,1000m/drum
Perfect Service(an excellent team serving you) 24*7 hours available.
Shipment:by sea(when the goods weighs more than 100KGS), by air (when the goods weighs less than 100KGS, or by DHL or Fedex express (when the goods weighs less than 50KGS)
| RG400/U coaxial cable specifications | |
| Material of Inner Conductor | Silver Copper |
| Structure of Inner Conductor | 19/0.20mm |
| Material of Insulation | PTFE |
| Diameter of Insulation | 3.00mm |
| Material of Braiding(Shielding) | Silver Copper |
| Structure of Braiding(Shielding) | 144+168*0.15mm |
| Material of Jacket | FEP |
| Diameter of Jacket | 4.95mm |
| Working temp | -55℃/200℃ |
| Impedance | 50Ω±2 |
| Voltage |
3000V |
