Place of Origin:
CHINA
Brand Name:
SSY
Certification:
UL/CE/ROHS
Model Number:
SSY-DRAG-001

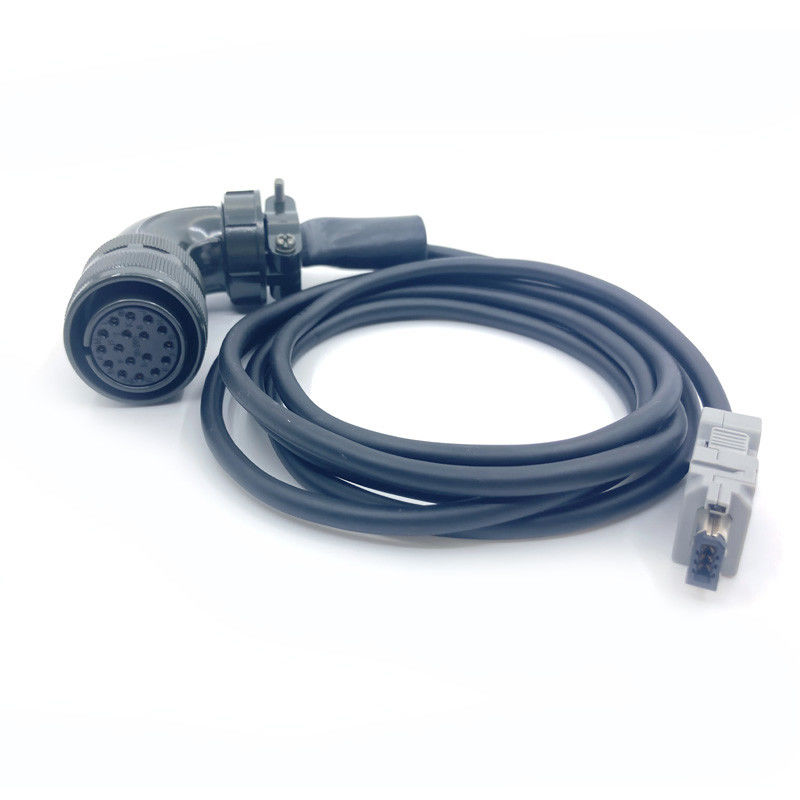

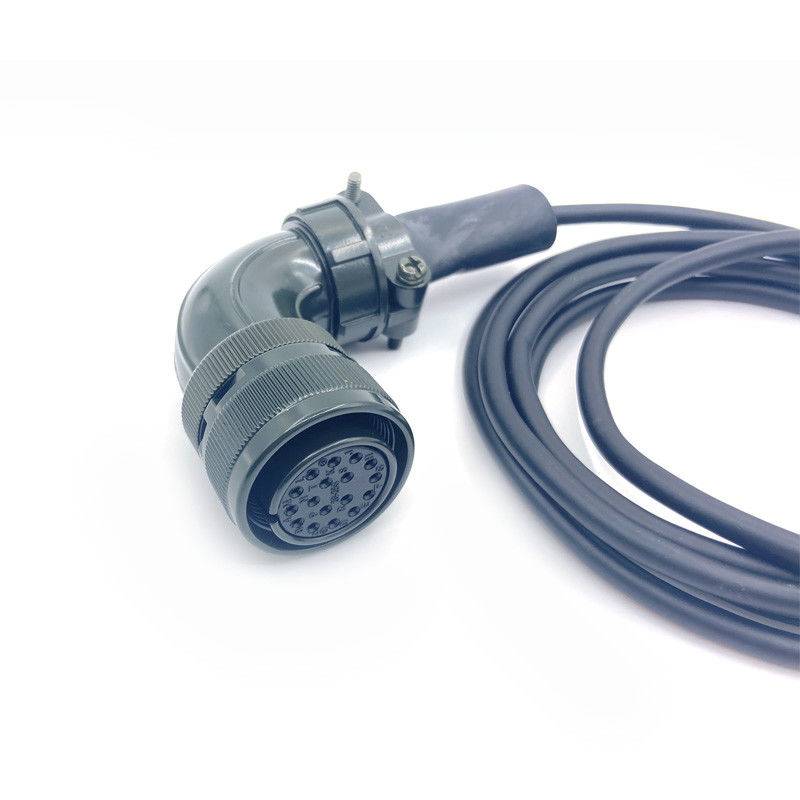

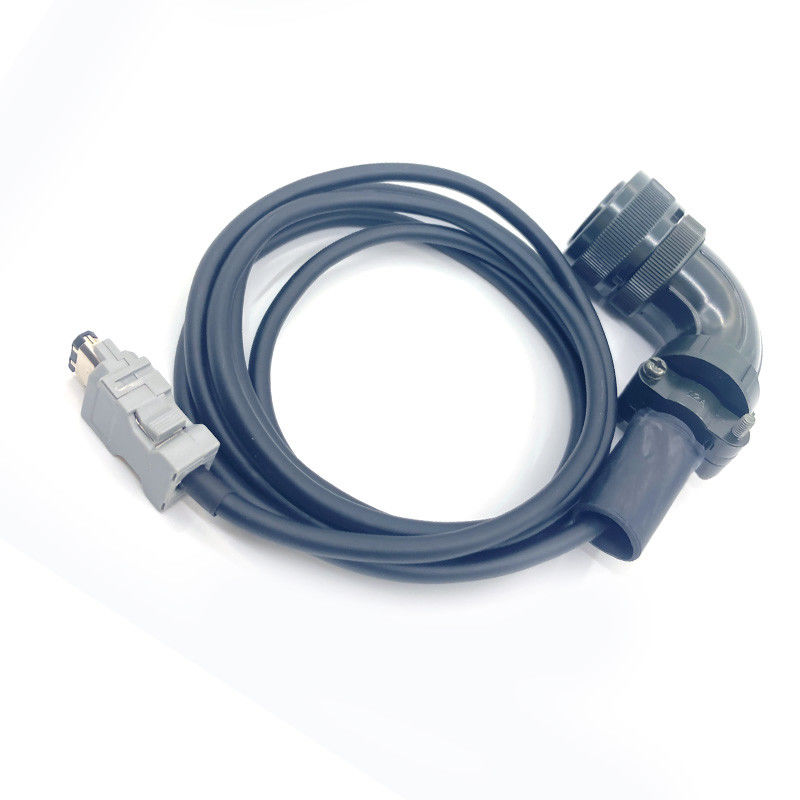

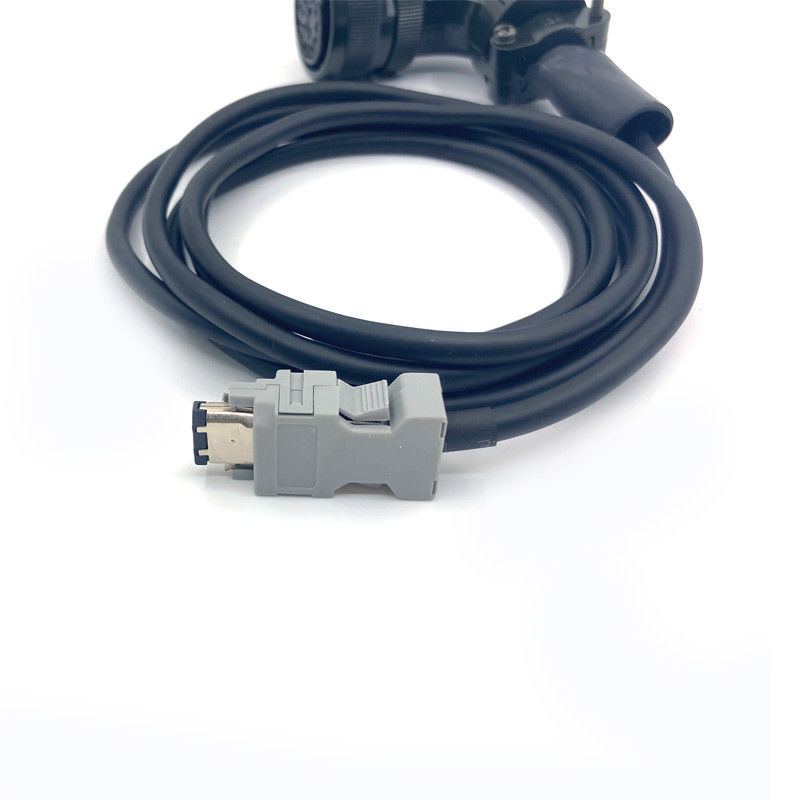

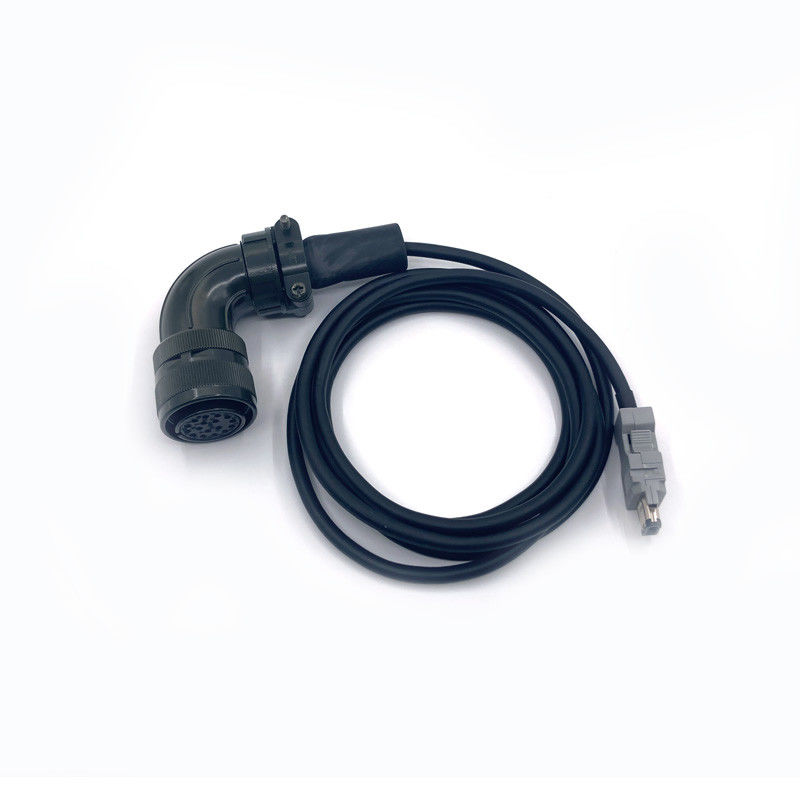

IP67/IP68 Servo Motor Encoder Connector Metal Cable Waterproof Male/Female Connector Military Connector cable
Cables with drag chain for industrial application.
We would like to provide ODM/OEM service to our customers with the drag chain cables and kits. it can be used in the indrial machine,automotive production line,mechanical arm,Machine tool.
IP67/IP68 Servo Motor Encoder Connector Metal Cable Waterproof Male/Female Connector Military Connector cable
| Item name | moulded cable m23 phoenix contact with sai m23 connectors 6 pin 9 pin 12 pin 19 pin | ||||
| Number of contacts | 6 | 9 | 12 | 16 | 19 |
| Connector locking system | screw | ||||
| Termination | solder | ||||
| Degree of protection | IP67 | ||||
| Mechanical operation | >500 mating cycles | ||||
| Upper temperature | ~+125℃ | ||||
| Lower temperature | ~-25℃ | ||||
| Rated voltage | 300V | 150V | 150V | 150V | |
| Rated impulse voltage | 2500V | 1500V | 1500V | 1500V | |
| Pollution degree | 3 | ||||
| Overvoltage categorie | Ⅱ | ||||
| Material group | III | ||||
| Rated current(40℃) | 20A | 8X8 A/1X20A | 8A | 8A | 16X8 A/3X10A |
| Contact resistance | ≤3mΩ | ||||
| Material of contact | Brass | ||||
| Contact plating | Gold | ||||
| Material of contact body | PBT/PA66 | ||||
| Material of housing | Brass nickel plated |
||||
