Place of Origin:
CHINA
Brand Name:
SSY
Certification:
UL/CE/ROHS
Model Number:
SSY-DRAG-001

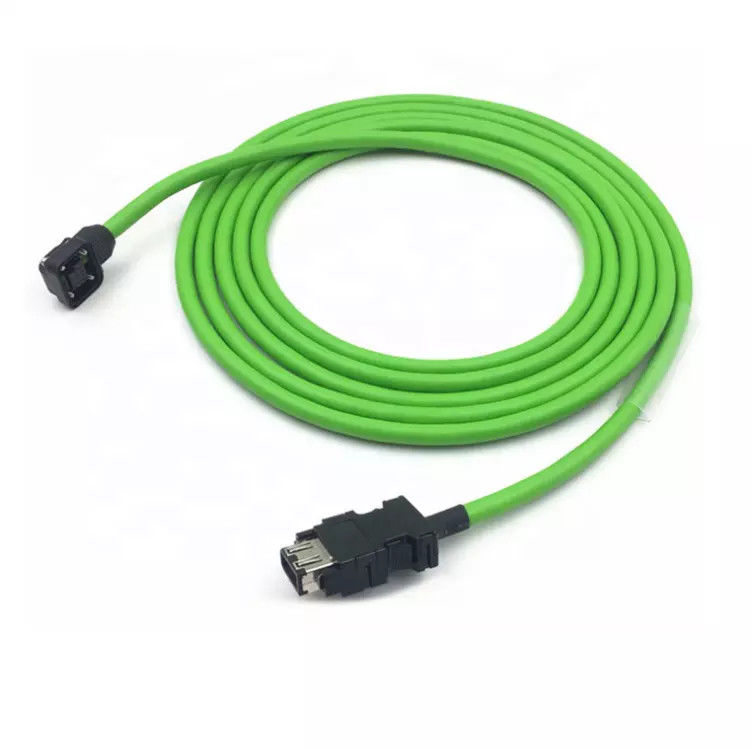

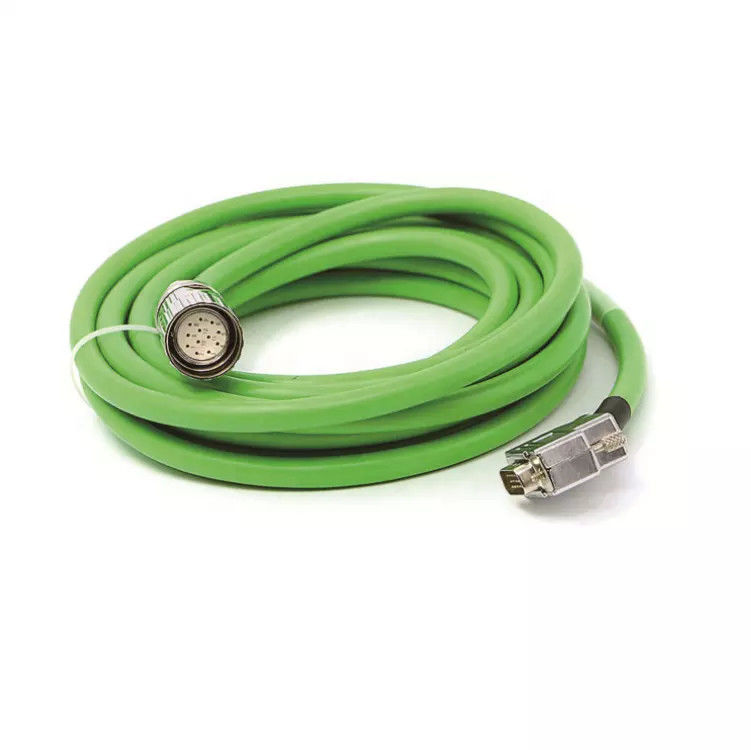

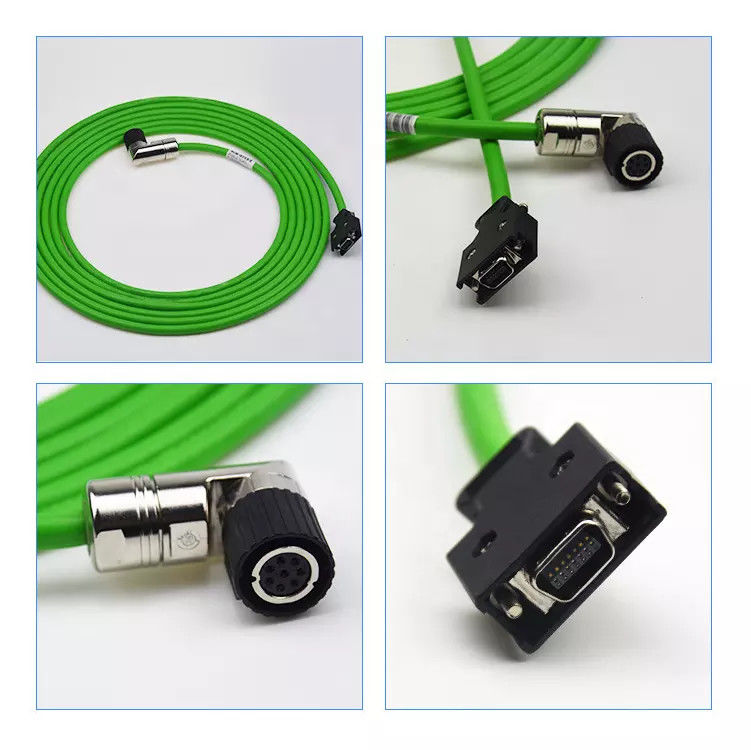

Customized M23 servo motor connector cable, M23 encoder harness connector
Cables with drag chain for industrial application.
We would like to provide ODM/OEM service to our customers with the drag chain cables and kits. it can be used in the indrial machine,automotive production line,mechanical arm,Machine tool.
Customized M23 servo motor connector cable, M23 encoder harness connector
| Item name | moulded cable m23 phoenix contact with sai m23 connectors 6 pin 9 pin 12 pin 19 pin | ||||
| Number of contacts | 6 | 9 | 12 | 16 | 19 |
| Connector locking system | screw | ||||
| Termination | solder | ||||
| Degree of protection | IP67 | ||||
| Mechanical operation | >500 mating cycles | ||||
| Upper temperature | ~+125℃ | ||||
| Lower temperature | ~-25℃ | ||||
| Rated voltage | 300V | 150V | 150V | 150V | |
| Rated impulse voltage | 2500V | 1500V | 1500V | 1500V | |
| Pollution degree | 3 | ||||
| Overvoltage categorie | Ⅱ | ||||
| Material group | III | ||||
| Rated current(40℃) | 20A | 8X8 A/1X20A | 8A | 8A | 16X8 A/3X10A |
| Contact resistance | ≤3mΩ | ||||
| Material of contact | Brass | ||||
| Contact plating | Gold | ||||
| Material of contact body | PBT/PA66 | ||||
| Material of housing | Brass nickel plated |
||||
