Name: GG.1B.304 Cable Plug Circular Push Pull Male Female Connectors IP68
Brand: SSY
SKU: FGG.2K
Price: 1 USD
Availability: InStock
Rating: 4.6 (132 reviews)

Home > products > Medical Connectors >

GG.1B.304 Cable Plug Circular Push Pull Male Female Connectors IP68

circular push pull connectors IP68

GG.1B.304 cable plug circular push pull connectors

IP68 Male female connector

Place of Origin:

China

Brand Name:

SSY

Certification:

ISO13485/ROHS/UL

Model Number:

FGG.2K

Request A Quote

GG.1B.304 Cable Plug Circular Push Pull Male Female Connectors IP68

Product Details

Material:

Coppor/PPS

Application:

Audio/Video

IP Rating:

Pins:

6~8Pins

Color:

Sliver

Type:

Push Pull Connecotr

High Light:

circular push pull connectors IP68

GG.1B.304 cable plug circular push pull connectors

IP68 Male female connector

Payment & Shipping Terms

Minimum Order Quantity

1000

Price

1~6USD

Packaging Details

carton

Delivery Time

4~6weeks

Payment Terms

T/T

Supply Ability

999999

FAG ECG FHG Equivalent Push Pull Female Quick Release Connectors 302 312 306

Get Best Price

FGG PHG Self Latching Plastic Push Pull Connectors ISO13485

Get Best Price

Medical 96hr Male Female Connector SpO2 ECG EKG IBP Cable Connector 5000 Cycles

Get Best Price

96hr Medical Connectors Push-Pull Self Latching Connector 5000 Cycles

Get Best Price

86-755-28347576

Contact Now

Product Description

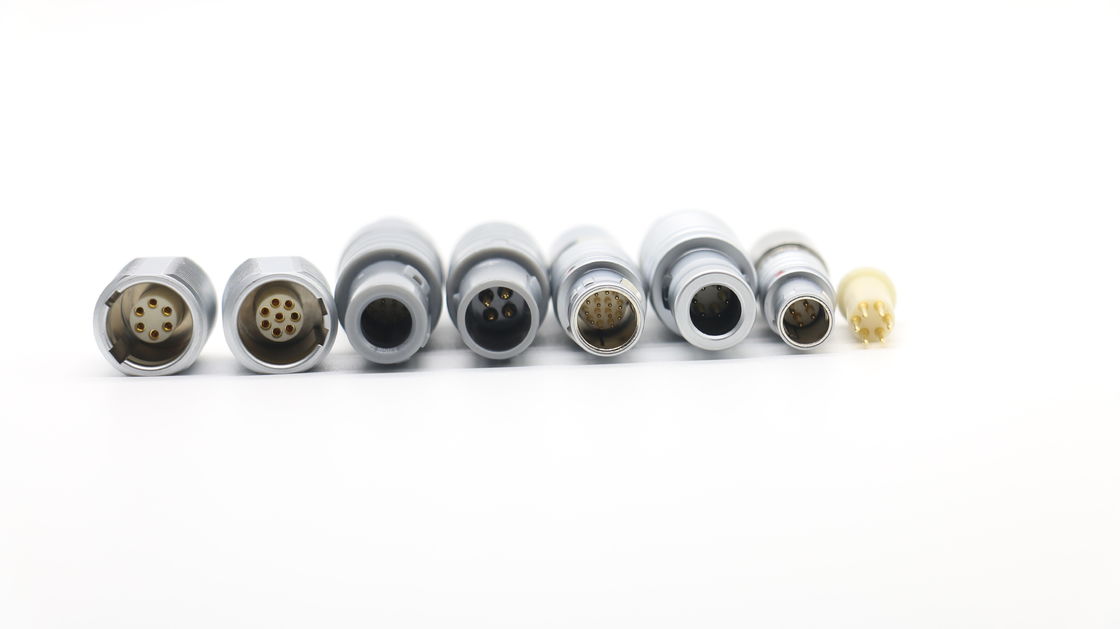

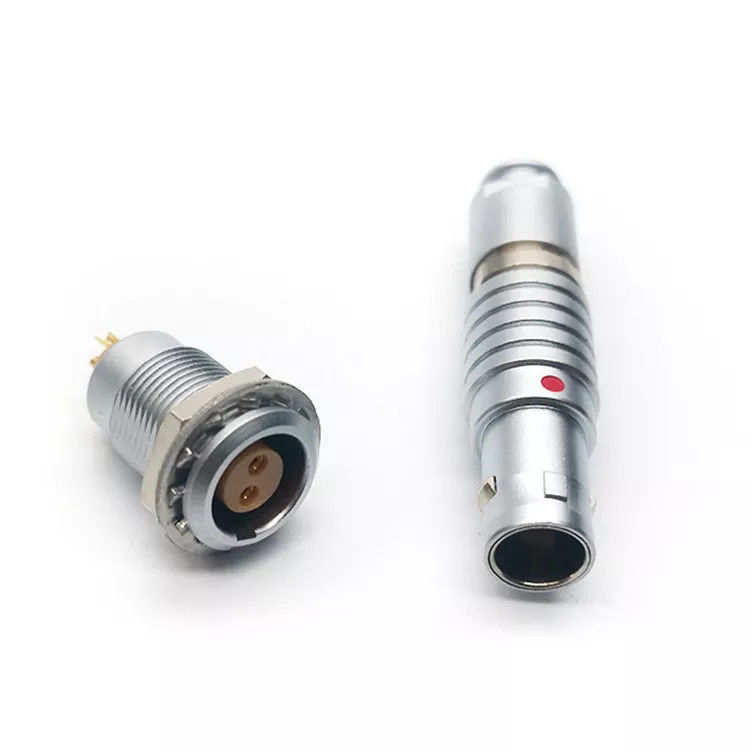

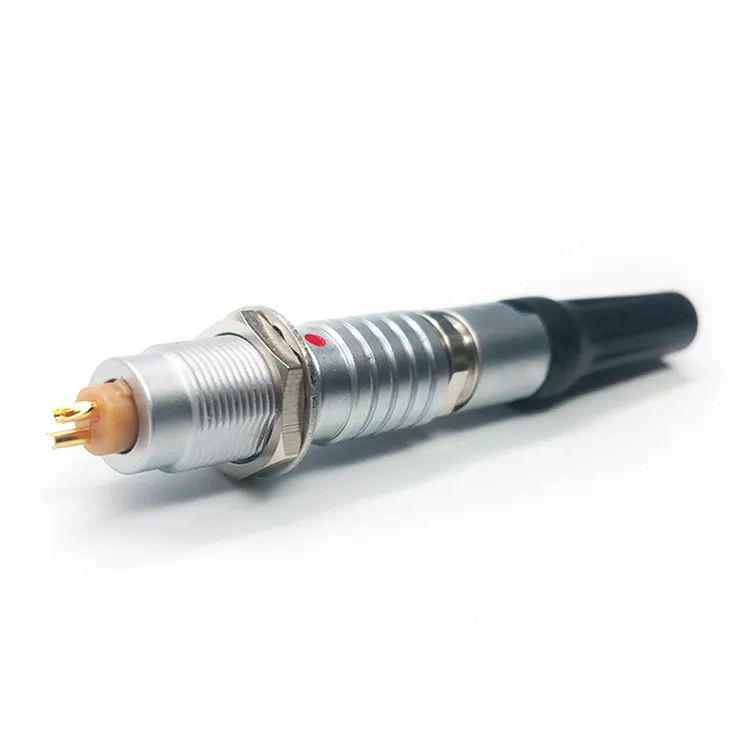

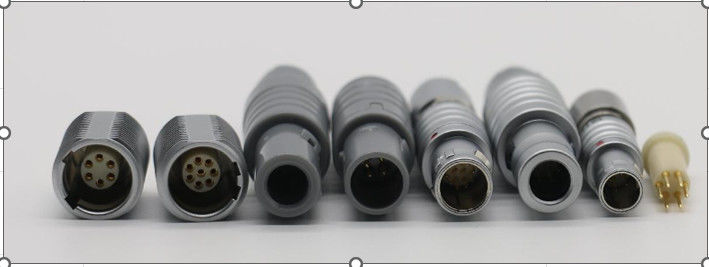

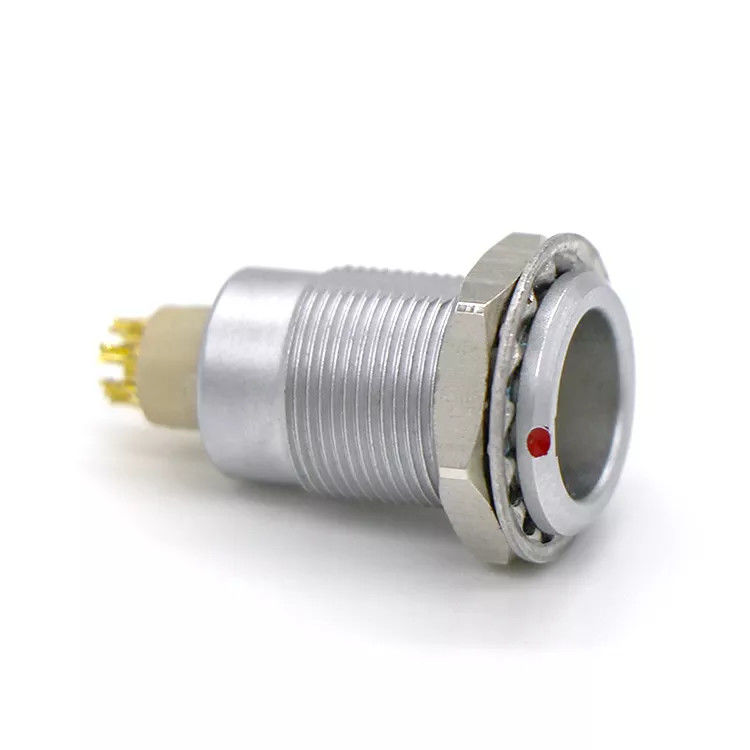

Circular push-pull male female connector with cable assembly FGG.1B.304 cable plug

Characteristics	Parameter
Locking type	Push pull self-latching type
Working Temperature	-55°~+250°
Maximum Humidity	up to 95% at 60°/140°F
Shielding Efficiency	75 dB (10 MHz) 40 dB (1 GHz)
Resistance to Vibration	15 g [10 Hz - 2000 Hz]
Salt spray corrosion test	96hr
Shock resistance	100g.6ms
Endurance	5000 cycles
Protection index(mated)	IP68

GG.1B.304 Cable Plug Circular Push Pull Male Female Connectors IP68 0

MAIN FEATURES

1.Secuity of the push-pull self-latching systerm

2.Multipol types

3.High packing density for space saving

4. Keying system for connecotr alinment

GG.1B.304 Cable Plug Circular Push Pull Male Female Connectors IP68 1

GG.1B.304 Cable Plug Circular Push Pull Male Female Connectors IP68 2
